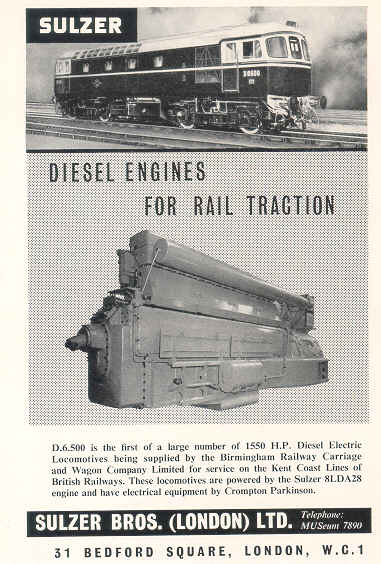

GENERAL DESCRIPTION
The Wheel arrangement is 'B-B' (i. e. the locomotive has two bogies, each of which has two individually-driven axles).

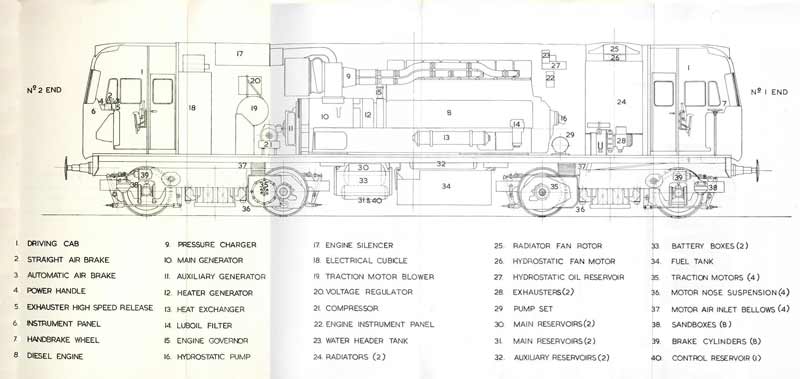

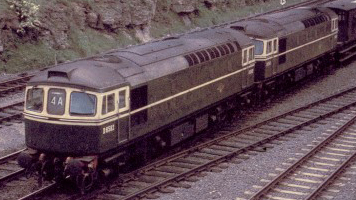

The locomotive may be operated singly, or may be coupled, to form a two-unit or a three-unit locomotive, with other locomotives which carry the 'blue star' coupling symbol.
Some locos were modified to work 'push pull' with '4TC' sets, these were rakes of four coaches that were to all intents and purposes Southern Electric Multiple Units with driving cabs but with out traction motors. They were either coupled to full 'EMUs' or to the modified class 33s. Locos like ours were called 'KAs' and in the 70s re numbered 33 0xx, the modified ones were known as 'KBs' and renumbered 33 1xx. Also a handfull were built to a narrower loading gauge to work the Hastings line, these were known as KCs and later renumbered 33 2xx.
GENERAL DATA
Weight in running order with full fuel: 73.5 tons
Weight in running order with half fuel: 72 tons
Number of traction motors:4
Continuous tractive effort:26,000lbs
Max Tractive Effort: 45,000lbs
Gear ratio: 62/17
Driving wheel diameter: 3ft 7in
Length over buffers: 50ft 9in
Height:12ft 8in, Width:8ft 10in.
Wheelbase of one bogie: 10ft 0in
Distance between bogie centres:29ft Oin
Minimum curve negotiable: 4 chains radius
Total fuel capacity: 800 gal
Total coolant capacity:227 gal
Lub oil Capacity: initial filling 108 gal
and 70 gal required for an oil change.
Total Sand capacity: 2 cwts
Maximum permitted speed: 80 mile/h
ELECTRICAL MACHINES
MAIN GENERATOR Type, Crompton CG391-A1;
Output - continuous 1012kW
Rating - continuous 1760 amps
AUXILIARY GENERATOR Type, Crompton CAG193-A1;
continuous output 57 k.w.
TRACTION MOTORS (4) Type Crompton C171-C2
Rating (continuous) 440 amps, Gear Ratio 62:17
ETH GENERATOR Type, Crompton CAG392-A1
ETH Index:48
|
